Case Studies / City Quays 3 - Belfast

SDG worked with Farrans Construction on a Grade A office development in Belfast.



Tyrone Formwork are currently the formwork contractor on a 250, 000 square feet grade A office development in Belfast. The full construction project is an estimated £50 million and when completed it will facilitate 2500 workers.

SDG were approached by Tyrone Formwork to assist with the supply of a permanent formwork solution.
Floor slabs are usually 300mm however this job had a requirement of a 1650mm deep slab. Contact was made with SDG to see if we could source a solution to pour without using traditional formwork methods to facilitate a quicker basement slab pour.

SDG sourced recostal® 2000 GT which is permanent formwork allowing Tyrone Formwork to create a construction joint on the slab with a key profile according to Euro Code 2.

About recostal® 2000 GT:
Shuttering units comprised of finely meshed, trapezoidally-profiled, expanded metal, designed for creating construction joints in concrete base slabs.
Units are supplied to specific project-heights on site. recostal® shuttering is also available with anti-leakage material and clamps to eliminate the need to weld rebars.

Benefits include:

  • Self-supporting, systemised method of construction joint support
  • Vastly reduced labour for fixing and removing traditional methods
  • Bespoke to dimensions onsite
  • Stronger joint profile allows reduced rebar
  • Accommodates slabs up to 3000mm
Share this case study
More Case Studies

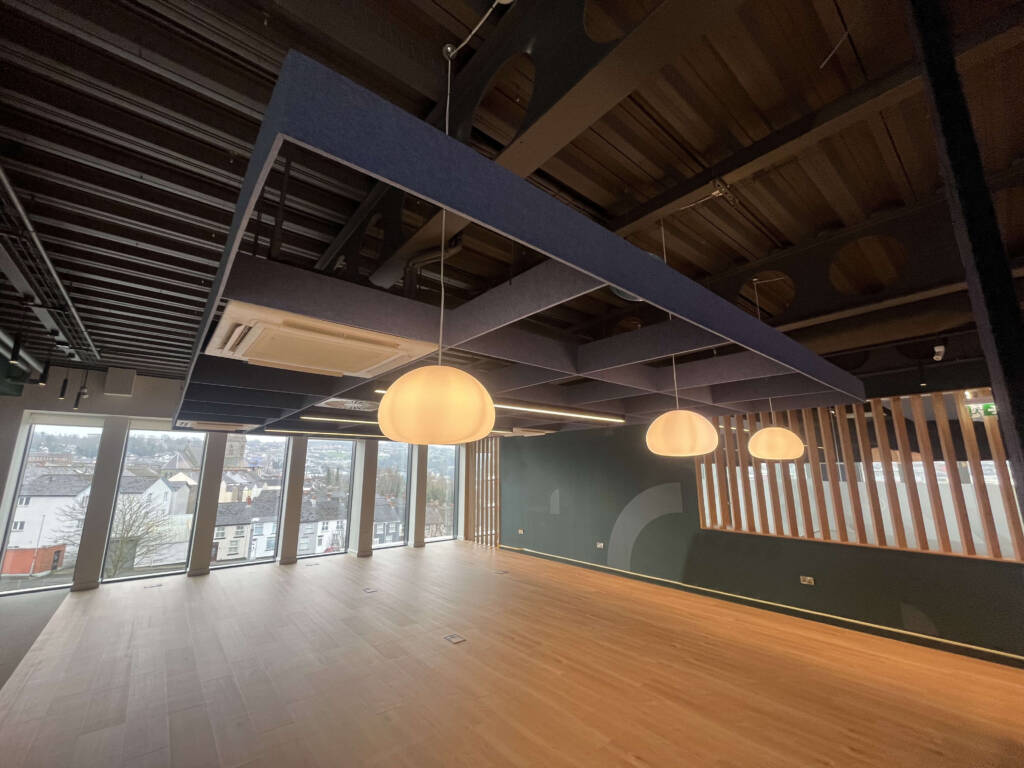

SDG working with Todd Architects designed and supplied a unique jointing system of acoustic ceilings expertly installed by Castle Ceilings.

SDG are the supply partner of Bekaert Murfor Compact, which was used to reinforce the external masonry. Used by MG Construction Murfor Compact offered a fast, simple and economical way of reinforcing masonry walls.

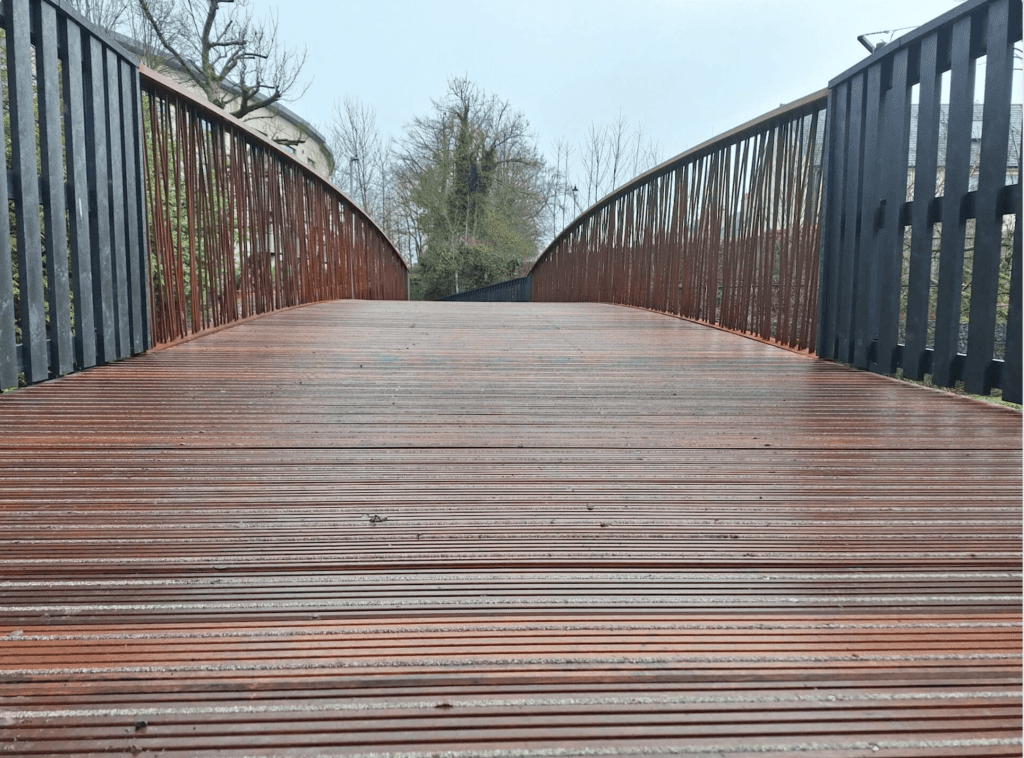

SDG working alongside Doran Consulting from design stage right through to advising the construction team on site reference installation best practice for bridge bearings at this Belfast project.
