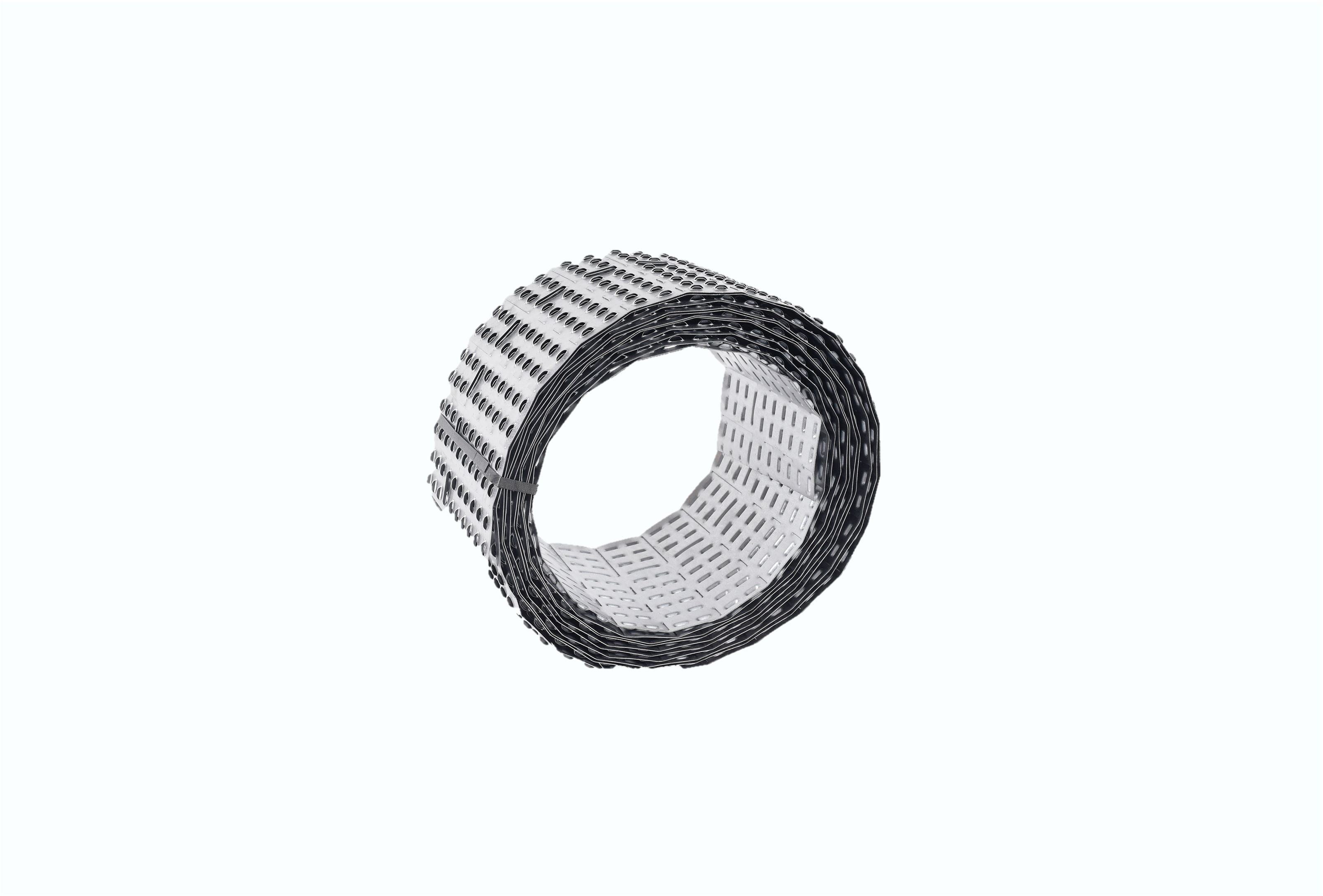

Shuttering strips facilitate a time cost-effective method for forming voids in concrete structures. Shuttering Strips can be folded every 50mm allowing for complex geometry’s to be formed.
- Base Slabs
- In-situ Floor Slabs
- Precast Floor Slabs
BENEFITS
- Easy to create openings in base slabs or in-situ/precast floor slabs
- Perforated profiles ensure good bond to concrete
- Almost any size possible due to pre-punched profiling at distances of 5 cm
- Easy vertical bending
- Various shapes possible
- No striking of Formwork
SIMPLE INSTALLATION
- Unroll Shuttering Strip and cut to length with tin snips or angle grinder
- Fold Shuttering Strip over the edge of a table at the required length and trim.
- Fix the overlapping ends with tie wire or metal strips.
TYPE | ITEM NO. | HEIGHT (MM) | UNITS PER PLALLET (M) |
---|---|---|---|
SF16 | 15310016 | 160 mm | 480 m |
SF20 | 15310020 | 200 mm | 420 m |
SF25 | 15310025 | 250 mm | 300 m |
SF30 | 15310030 | 300 mm | 300 mm |
TECHNICAL DATA SHEET
CONSTRUCTION ACCESSORIES PRODUCT CATALOGUE
